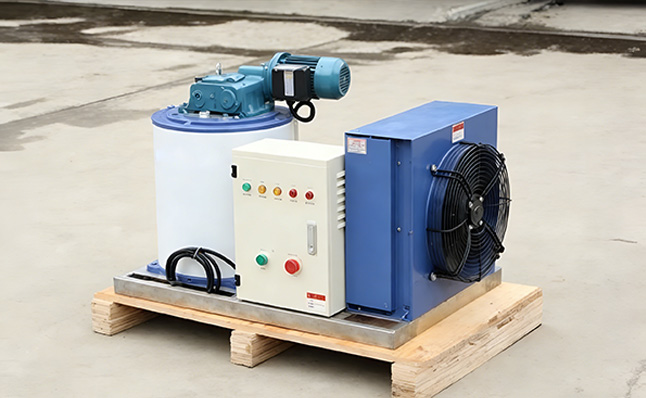

Flake Ice Machine

Flake Ice Machine

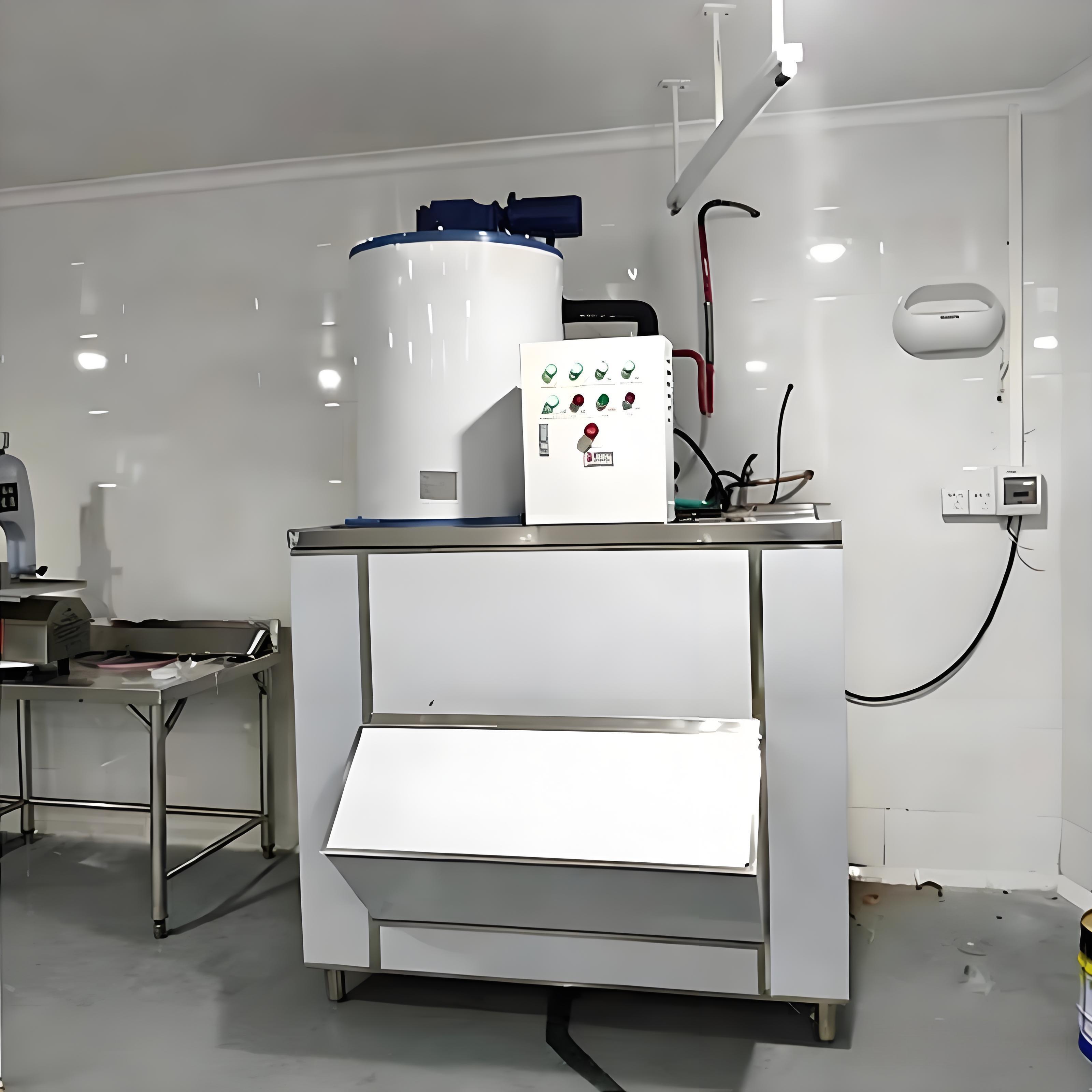

Foodline flake ice machine produces clean, dry ice flakes for seafood, food processing, and cooling. It is easy to install and simple to operate with PLC control and one‑key start. The machine uses SUS304 stainless steel and meets HACCP and FDA standards. Main parts come from well‑known brands for stable and long‑lasting use. Modular design makes maintenance easy, and the system is energy efficient. You can also get custom solutions and full service support from design to installation and after‑sales care.

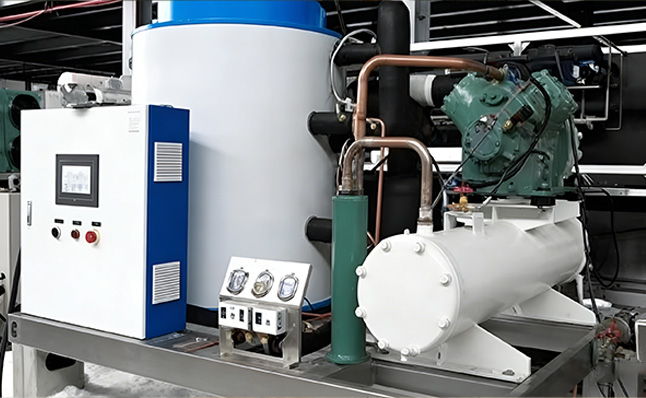

3T Flake Ice Machine

Get A Quote

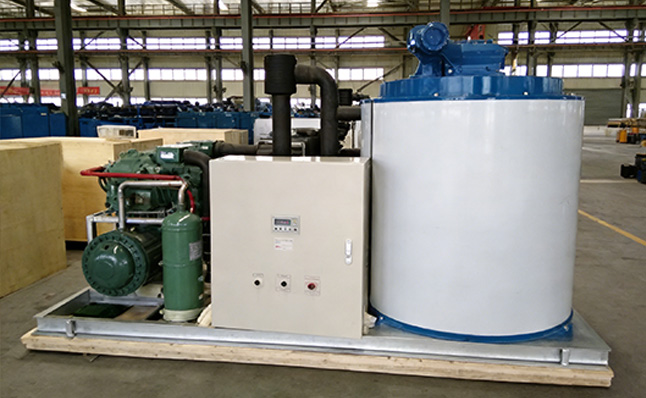

5T Flake Ice Machine

Get A Quote

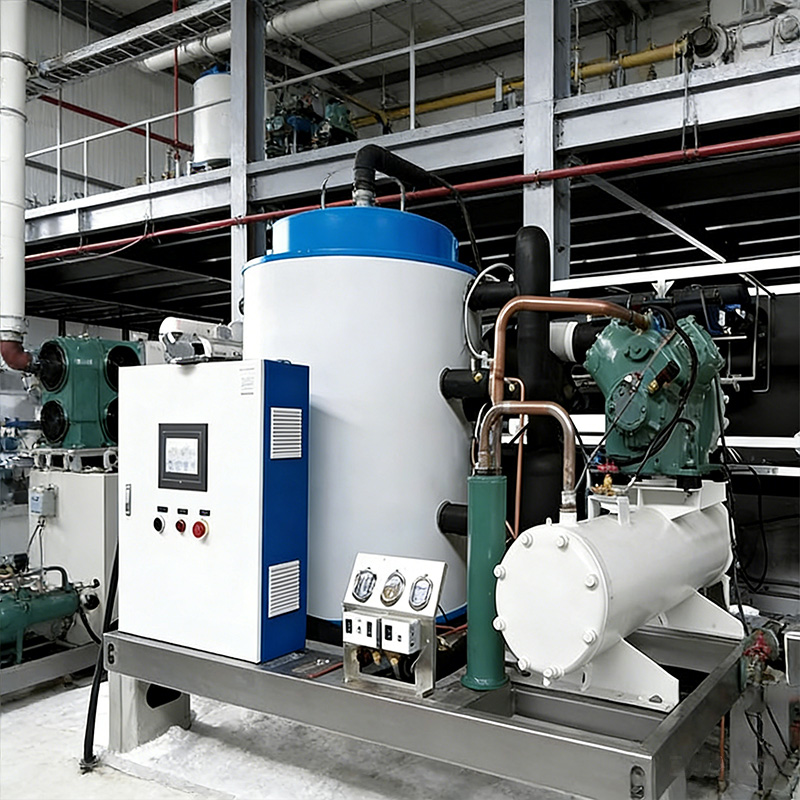

8T Flake Ice Machine

Get A Quote

Technical Specifications

Parameter	GLF5T-R4A (3t)	GLF5T-R4A (5t)	GLF10T-R4A (10t)
Ice Output (kg/24h)	3000	5000	10000
Refrigeration Capacity (kW)	19.5	37.2	83.2
Evaporating Temperature (°C)	-20	-20	-20
Condensing Temperature (°C)	40	40	40
Standard Ambient Temp. (°C)	25	25	25
Standard Water Temp. (°C)	20	20	20
Total Input Power (kW)	15.05	22.05	43.04
Compressor Power (kW)	9.5	20.2	38.9
Reducer Power (kW)	0.37	0.37	0.75
Water Pump Power (kW)	0.1	0.12	0.37
Air Fan Power (kW)	0.76	1.36	2.84
Power Supply	3P-380V-50Hz	3P-380V-50Hz	3P-380V-50Hz
Water Pressure Range (MPa)	0.1–0.5	0.1–0.5	0.1–0.5
Refrigerant	R404A	R404A	R404A
Ice Temperature (°C)	-5	-5	-5
Ice Thickness (mm)	1.5–2.2	1.5–2.2	1.5–2.2
Water Consumption (m³/h)	0.1	0.2	0.42
Net weight	950kg	1000kg	1680 KG
Dimension（LWH）mm	1500mm1100mm1350mm	2000mm1600mm1650mm	2700mm1900mm1850mm

Note: Technical specifications may change without notice due to ongoing technological advancements.

Product Advantages

Get A Quote

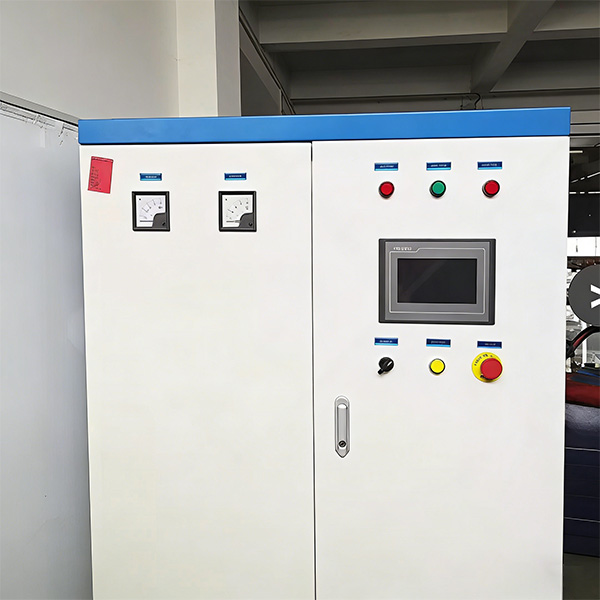

PLC Intelligent Control

operation buttons are clearly labeled, intuitive to operate, and user-friendly for seamless daily use.

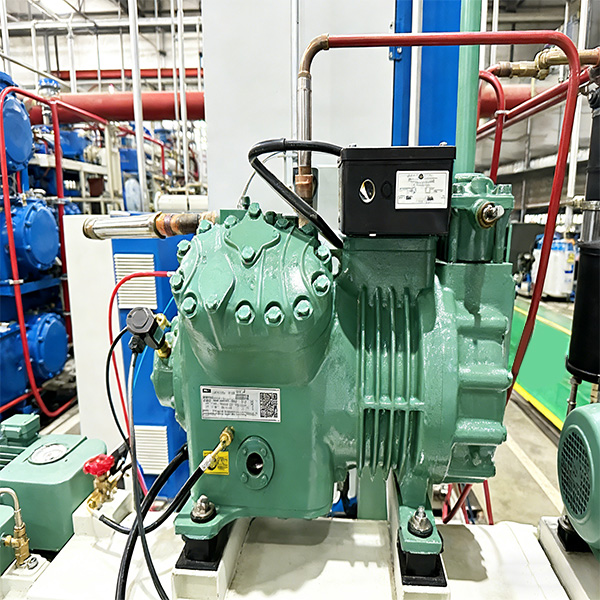

Compressor

boasts fast cooling, stable & smooth operation, and reduced energy consumption for long-term cost savings.

Ice Cutter

low operating resistance, minimal wear, quiet performance, and consistent, uniform ice formation.

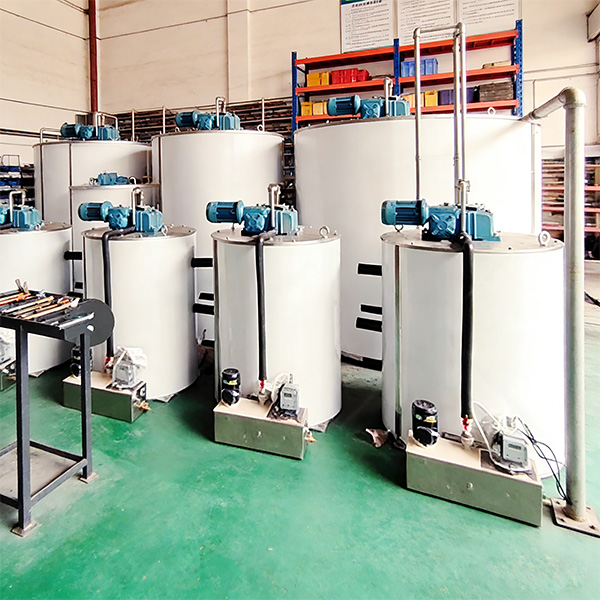

Evaporation Barrel

Optimized with a rolling-operation structure to eliminate refrigeration system leaks , ensuring consistent performance.

Application Areas

flake ice works great for keeping seafood fresh at markets, chilling produce during transport. It’s also perfect for food processing and cooling in concrete projects, chemical labs—anywhere you need quick, clean cold!

Get A Quote

Produce Distribution Center

Seafood Market

Food Processing Workshop

Cold storage

Why Choose Us

1

Food-Safe R&D Team

Focus on hygiene in design, uses SUS304 stainless steel, meets HACCP/FDA standards, safe for food-related scenarios.
2

Customizable Ice Solutions

Provide tailored settings for different ice thickness & capacities , fit your business needs.
3

Reliable After-Sales Service

Full support from install to maintenance, 24h consultation, easy part replacement for quick issue-solving.
4

Efficient & Durable Design

Top-brand parts + 10+ year lifespan, energy-saving system, cut long-term operating costs while staying stable.

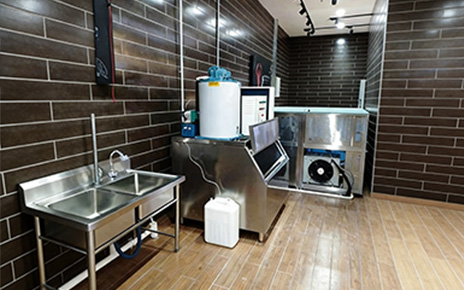

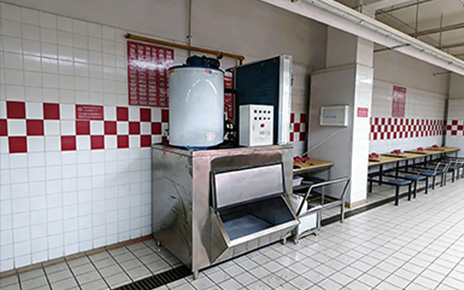

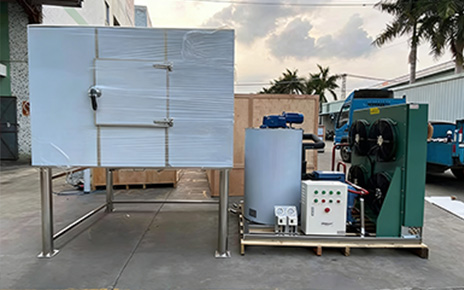

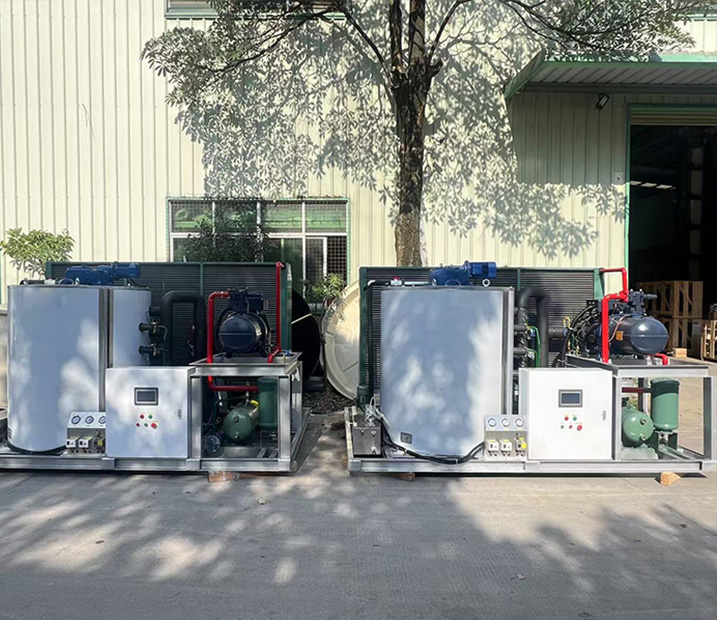

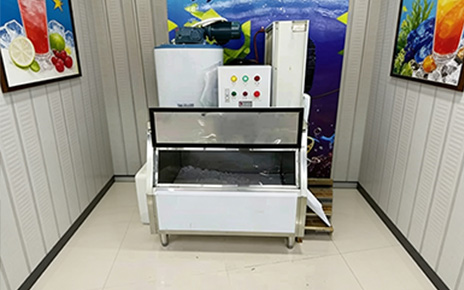

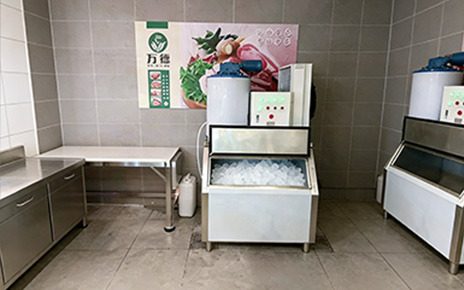

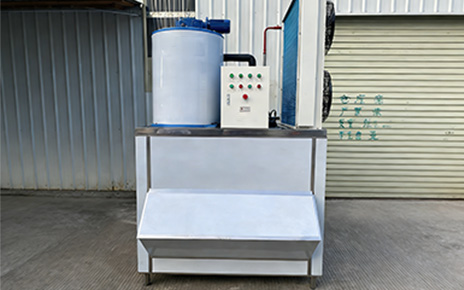

Customer Real Case

Our products are exported to more than 100 countries and regions, with more than 2,000 customer cases, and are deeply recognized and praised by customers.

Get A Quote

About Factory

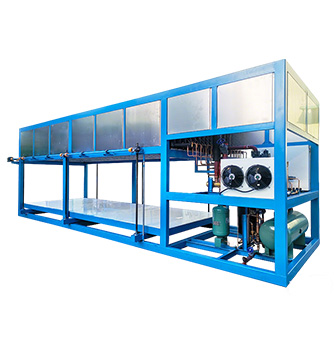

Henan Foodline Machinery Co., Ltd. is located in Zhengzhou Henan, China, and has focused on the R&D, production and sales of ice-making equipment for many years, specializing in a full range of ice machines including Tube Ice Machines, Ice Block Making Machines, Direct Cooling Block Ice Machines, and Commercial Ice Maker Machines; with over 500 team members and an 8,000-square-meter manufacturing plant, we combine rich industry experience with advanced production technology to ensure each product meets high-quality standards, and our reliable ice-making equipment has been exported worldwide, earning the trust and recognition of more than 2,000 customers across different industries.
